Blue and waste water solutions - Made in Germany

NGO´s involvement in the area of water treatment extends to emergency projects and long-term infrastructute. In particular, emergency projects require technically robust solutions to service larger crowds which are easy to deploy and can be operated by local partners in the long term. Alternatively, current-less solutions can also be used on a „family level“.

Long term investments in water supply often lead to solutions, where factors such as the ease of operation, low power consumption, low maintenance and the employment of chemicals (also to clean the system) play an important role, ie.in El Charco / Columbia

Hospitals and Hotels – especially in regions where there is no guaranteed safe drinking water supply, require a permanent solution for raw water treatment. Supplying hotel guests with small bottles of drinking water does not release hotels from their obligation of providing their customers with „almost“ drinkable water for showering and washing. (Buzzword Legionella).

Our 6-step method allows hotels and hospitals to meet these quality requirements without engaging in highly intensive personnel or energy operations and without need for chemicals. In the case of saline water sources (brakish- or seawater), we provide the RO systems with the lowest possible pressure performance, in order to minimize the efforts required for operation and maintenance.

In many regions of the world people rely on drinking water from lakes, wells or rivers, which is often polluted and undrinkable. With this in minde we have developed ARISU "home". Our goal is to provide these regions with an opportunity to eliminate the coliform germs and bacteria from their polluted drinking water. Our „plug & play“ system consists of a large membrane (UF), delivered in combination with a 60-liter container, necessary hose connections and a dispensing valve. It is capable of providing drinking and cooking water for a 5-10 member family through a realistic and achievable flow rate of 2.5 L / h. For long-term applications, the membrane should be rinsed with clean water at monthly intervals - without chemicals!

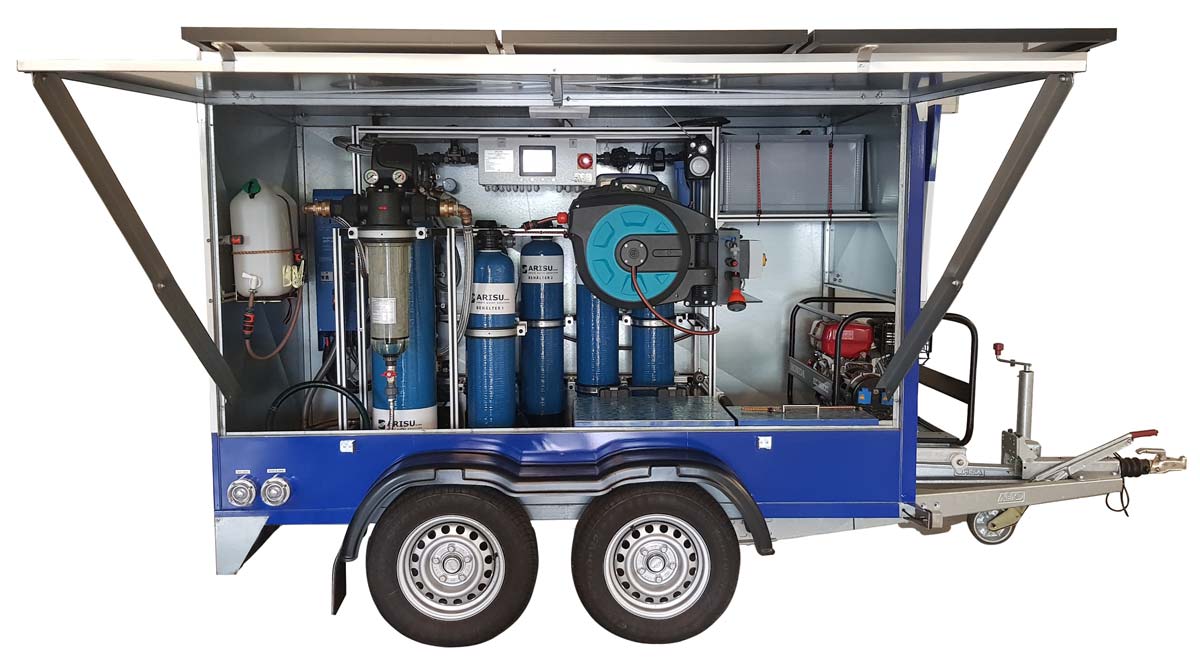

Medium-capacity plants (500 to 2500 L / h) can provide approx. 40 L / day / person (WHO standard) of drinking water for up to 1500 people. Due to their compact size and weight ( less than 400 kg) it is possible to install them on trailers or pick-ups, if a need for multiple source of water usage exists or to relieve temporary emergencies. The supply of electricity to these systems is provided by photovoltaic and / or through an integrated diesel generator. Appropriate interpretations are made according to the resources available on site. In view of the wide spectrum of possible applications for mobile systems, we can also provide a so-called "combi-system", which first cleans the raw water in six stages and then performs a desalination via a small RO method.

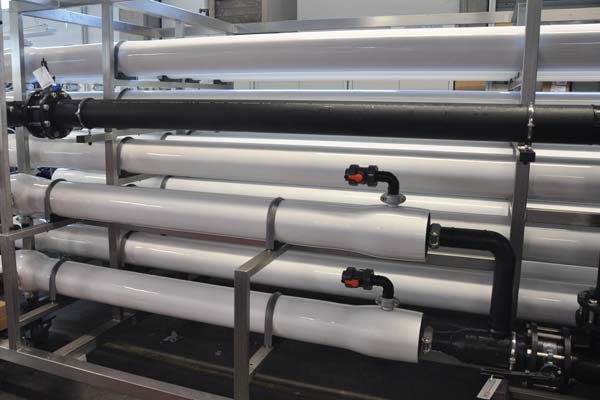

With regard to possible plant sizes, we are able to cover the requirements for a capacity of approx. 10,000 m3 / day. In the case there is a need to supply larger cities or industrial sites with a higher amount of drinking water, we can provide a de-centralized solution across multiple sites. Our portfolio of available technologies includes not only our 6-step process, but also ultrafiltration (UF),reverse osmosis (RO), demanganization and deironing solutions.
